The 6th generation of Bathrive® brand GX
series——

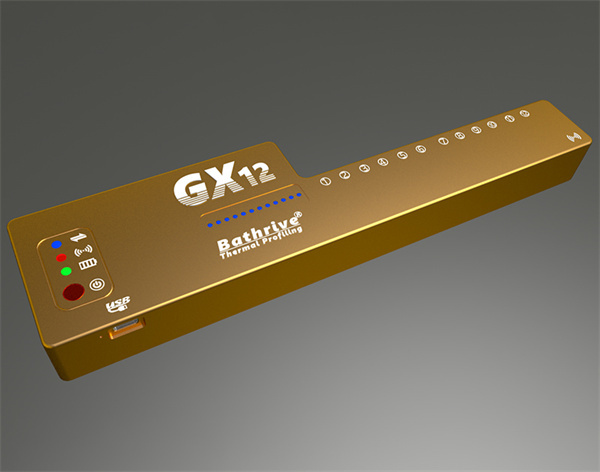

The Bathrive® GX12 instrument is especially suitable for scenarios that require wireless real-time data transmission. It belongs to the 6th generation product of the Bathrive® brand. It realizes real-time wireless transmission of data while meeting low power consumption, making real-time temperature data a reality. Wireless data transmission The distance is more than 2KM (barrier-free). In order to cope with different reference scenarios, there are many models of GX series products, and the space is limited. For more detailed product information, please contact the local supplier or log on to the official website www.bathrive.com





Using aerospace-grade ultra-low power consumption 32-bit MCU
——

The use of aerospace-grade ultra-low power consumption 32-bit MCU makes the instrument only 1000Ma battery can provide more than 20 hours of long battery life when the wireless transmission is turned on, and the maximum number of S data storage is up to 2048 groups (support power-off storage)





One - key automatic curve optimization function——

Modular software design, independent process library, product library, furnace library, great convenience for users to systematically manage temperature curve files, one-key automatic curve optimization function, millions of temperature curve data models, 3 optimization modes , can quickly recommend the best furnace setting parameters for the user, greatly reducing the time for adjusting the oven.







▍Typical application fields of products

Electronic manufacturing, semiconductor, photovoltaic, spraying, brazing, new energy, metallurgy, glue curing (vertical furnace), food baking, etc.



semiconductor

electronics manufacturing

Photovoltaic

spraying

Brazing

new energy

metallurgy

food baking



▍Main function of the product

Ultra   -small size, built-in 32-bit high-speed processing chip with super computing power, making temperature measurement handy, and the design service life is more than 10 years

● High measurement accuracy +/-0.5°C, fast speed, the fastest 0.01 seconds/time, easily meet the challenges of various temperature measurement fields

● Data transmission mode, high-speed USB data transmission and charging are integrated, the battery is fully charged while transmitting data, no additional charging is required

● 3 trigger start modes and 4 trigger stop modes can be optimized and matched at will to realize intelligent start and stop without manual intervention

● Built-in 1000MA high temperature resistant polymer rechargeable battery for power supply. When the wireless transmission is turned on, it can work continuously for 20~25 hours on a single charge (related to the sampling frequency and the number of channels). When the wireless transmission is turned off, it can work continuously for more than 50 hours on a single charge

● As many as 100 sets of curve overlapping analysis, support temperature, furnace, process and other data export, furnace temperature data import and export

● A maximum of 2048 sets of temperature curve data can be saved

● Complete firmware information prompts, users can check the use record, status and hardware configuration information of the instrument at any time

● Intelligent PWI index analysis, floating PWI and CPK indicators can visually display the curve analysis results, and issue the CPK and SPC quality analysis reports of the curves

● Manual and automatic curve optimization functions can effectively shorten the time for adjusting the oven. The data model of nearly one million temperature curves can provide users with the best recommended values ​​for furnace temperature and chain speed. With the blessing of this function, novices can easily and quickly complete the oven temperature setting

● The instrument time can be set or calibrated to be synchronized with the computer

● Powerful curve editing functions, including curve clipping, curve alignment, curve moving and many other curve editing methods, make curve editing become arbitrary

● Curve tolerance zone display makes the reasonable variation range of the curve clear at a glance

● Highlight the analysis section, so that the curve sections corresponding to all analysis data items are highlighted, and you can simply and directly see the one-to-one correspondence between the analysis data and each section of the curve without other auxiliary means

● The curve can be intercepted and analyzed in sections and the analysis data of each section can be issued

● Provide local MES data interface, conveniently share curve data to customer MES system

● Support data batch download, single download, batch delete, single delete

● Multi-level operation authority management

● Braid’s unique thermocouple status indicator, no need to connect to the computer, the on-off status of the thermocouple is clear at a glance

▍Instrument technical specifications :

Instrument model: Bathrive_GX12
Number of channels: 12
Instrument size: 203 * 50 * 20 (mm)
Measurement accuracy: ±0.5°C
Temperature resolution: 0.1°C
Sampling speed: 100 times/second~1 hour/time
Storage space: 2GB
Number of storage groups : 2048 groups (8~2048 support user settings)
Battery capacity: 1000MA explosion-proof high temperature resistant battery
Instrument start mode: temperature, time, button
Instrument stop mode: temperature, time, button, communication instrument Working temperature
: -40~85℃
Measuring range: -200~1370℃
Thermocouple type: K type
Communication port: USB
Software language: Simplified Chinese, Traditional Chinese, English
Software platform: WIN-XP, WIN7~10 (32 and 64 bits) Win-XP, 7, 10,11 and above (32 or 64 bit system)

▍Wireless Receiver

Adopt 32-bit high-speed processor + excellent performance IoT module to realize remote transmission of data, and the transmission distance exceeds 2KM

▍Heat insulation box

Adopting aviation-grade heat insulation technology, under the condition of certain temperature and space, the heat insulation time can be maximized, and heat insulation boxes of different specifications are equipped according to different usage scenarios

Model: GX1135
Dimensions: 260 * 76 * 35 (mm)

Heat resistance time: 150°C 200°C 250°C 300°C

                    26 minutes 17 minutes 11 minutes 8 minutes

▍Thermocouple components
can be equipped with corresponding thermocouple components according to different usage scenarios

• GX12 Wireless Furnace Temperature Tester
