Bathive ® The GX62 instrument is particularly suitable for scenarios that require wireless real-time data transmission and belongs to the Bathive category ® The 6th generation product of the brand achieves real-time wireless transmission of data while meeting low power consumption requirements, making it a reality to obtain temperature data in real time. The wireless data transmission distance exceeds 2KM (barrier free). To cope with different reference scenarios, the GX series product models are numerous and the space is limited. For more detailed product information, please contact your local supplier or log in to the official website www.bathrive.com

▍Product Features

The 6th generation of Bathrive® brand GX
series——

The Bathrive® GX62 instrument is especially suitable for scenarios that require wireless real-time transmission of data. It belongs to the 6th generation of the Bathrive® brand. It realizes real-time wireless data transmission while meeting low power consumption, making real-time temperature data a reality. Wireless data transmission The distance is more than 2KM (barrier-free). In order to cope with different reference scenarios, there are many models of GX series products, and the space is limited. For more detailed product information, please contact the local supplier or log on to the official website www.bathrive.com





Using aerospace-grade ultra-low power consumption 32-bit MCU
——

The use of aerospace-grade ultra-low power consumption 32-bit MCU makes the instrument only 1000Ma battery can provide more than 20 hours of long battery life when the wireless transmission is turned on, and the maximum number of S data storage is up to 2048 groups (support power-off storage)





One - key automatic curve optimization function——

Modular software design, independent process library, product library, furnace library, great convenience for users to systematically manage temperature curve files, one-key automatic curve optimization function, millions of temperature curve data models, 3 optimization modes , can quickly recommend the best furnace setting parameters for the user, greatly reducing the time for adjusting the oven.







▍Typical application fields of products

Electronic manufacturing, semiconductor, photovoltaic, spraying, brazing, new energy, metallurgy, glue curing (vertical furnace), food baking, etc.



semiconductor

electronics manufacturing

Photovoltaic

spraying

Brazing

new energy

metallurgy

food baking



▍Main function of the product

Ultra   -small size, built-in 32-bit high-speed processing chip with super computing power, making temperature measurement handy, and the design service life is more than 10 years

● High measurement accuracy +/-0.5°C, fast speed, the fastest 0.01 seconds/time, easily meet the challenges of various temperature measurement fields

● Data transmission mode, high-speed USB data transmission and charging are integrated, the battery is fully charged while transmitting data, no additional charging is required

● 3 trigger start modes and 4 trigger stop modes can be optimized and matched at will to realize intelligent start and stop without manual intervention

● Built-in 1000MA high temperature resistant polymer rechargeable battery for power supply. When the wireless transmission is turned on, it can work continuously for 20~25 hours on a single charge (related to the sampling frequency and the number of channels). When the wireless transmission is turned off, it can work continuously for more than 50 hours on a single charge

● As many as 100 sets of curve overlapping analysis, support temperature, furnace, process and other data export, furnace temperature data import and export

● A maximum of 2048 sets of temperature curve data can be saved

● Complete firmware information prompts, users can check the use record, status and hardware configuration information of the instrument at any time

● Intelligent PWI index analysis, floating PWI and CPK indicators can visually display the curve analysis results, and issue the CPK and SPC quality analysis reports of the curves

●  手动,自动曲线优化功能,有效缩短调节烘炉时间,近百万温度曲线数据模型可为用户提供最优的炉温及链条速度推介值,有此功能的加持,新手也可以轻松快速完成炉温设置

●  仪器时间可设置或校准与电脑同步

●  强大的曲线编辑功,包括曲线剪裁,曲线对齐,曲线移动等众多曲线编辑手段,让曲线编辑变得随心所欲

●  曲线公差带显示,让曲线的合理变化范围变得一目了然

●  突出显示分析段，让所有分析数据项对应的曲线区段突出显示,简单直接的看到分析数据与曲线各个区段的一一对应关系而无需其他辅助手段

●  可对曲线进行分段截取分析并出具各段分析数据

●  提供本地MES数据接口,方便的将曲线数据分享到客户MES系统

●  支持数据批量下载,单条下载，批量删除，单条删除

●  多级操作权限管理

●  布瑞得独有的热电偶状态指示器，无需连接电脑，热电偶通断状态一目了然

▍仪器技术规格：

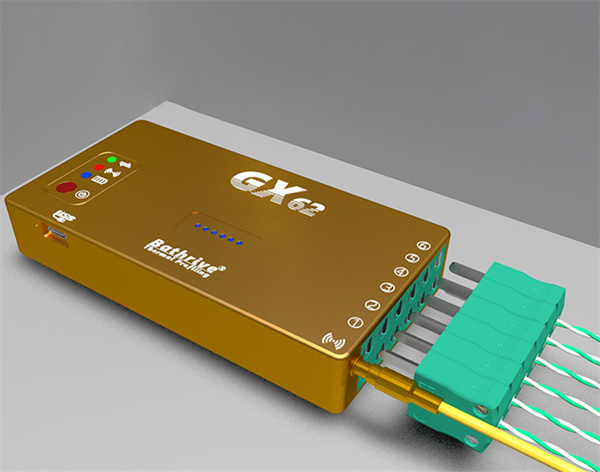

Instrument model: Bathrive_GX62
Number of channels: 6
Instrument size: 116 * 60 * 20 (mm)
Measurement accuracy: ±0.5°C
Temperature resolution: 0.1°C
Sampling speed: 100 times/second~1 hour/time
Storage space: 2GB
Number of storage groups : 2048 groups (8~2048 support user settings)
Battery capacity: 1000MA explosion-proof high temperature resistant battery
Instrument start mode: temperature, time, button
Instrument stop mode: temperature, time, button, communication instrument Working temperature
: -40~85℃
Measuring range: -200~1370℃
Thermocouple type: K type
Communication port: USB
Software language: Simplified Chinese, Traditional Chinese, English
Software platform: WIN-XP, WIN7~10 (32 and 64 bits) Win-XP, 7, 10,11 and above (32 or 64 bit system)

▍Wireless Receiver

Adopt 32-bit high-speed processor + excellent performance IoT module to realize remote transmission of data, and the transmission distance exceeds 2KM

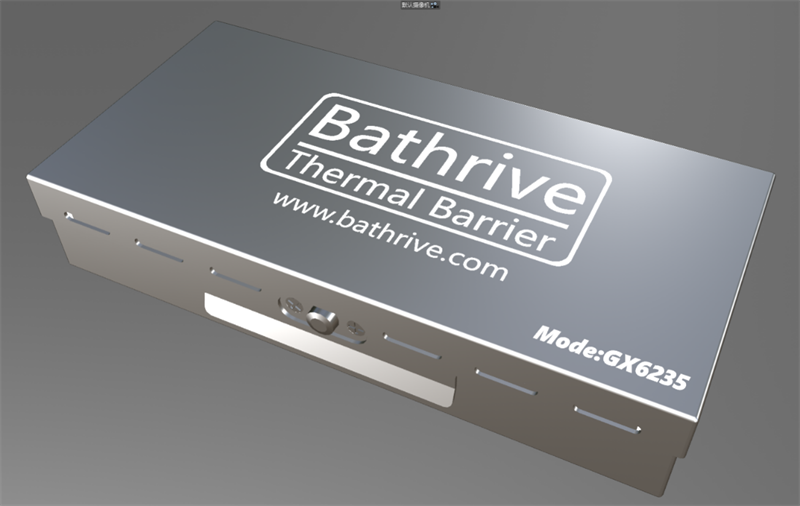

▍Heat insulation box

Adopting aviation-grade heat insulation technology, under the condition of certain temperature and space, the heat insulation time can be maximized, and heat insulation boxes of different specifications are equipped according to different usage scenarios

Model: GX6235
Dimensions: 175 * 86 * 35 (mm)

Heat resistance time: 150°C 200°C 250°C 300°C

                    26 minutes 17 minutes 11 minutes 8 minutes

▍Thermocouple components
can be equipped with corresponding thermocouple components according to different usage scenarios

• GX62 Wireless Furnace Temperature Tester
