3D solder paste thickness tester
Category: Products
Category: 3D solder paste thickness gauge
The whole series of BathiveBride products are free of charge for 2 years or 24 months, and the software is upgraded for free for life. No notice will be given to upgrade or improve the software or hardware functions of the whole series of BathiveBride products. For more detailed product information, please check the official website of BathiveBride brand at any time: www.bathrive.com, or Email: bathrive@163.com
key word: BathiveBride products
- DESCRIPTION
-
- Commodity name: 3D solder paste thickness tester
- Commodity ID: 3D SPI 6500
Type: semi-automatic 3D mode, manual 3D mode
1. Product functions
1. Friendly programming interface.
2. A variety of measurement methods
3. The scanning spacing is adjustable
4. Image 3D simulation function
5. Independent 3D dynamic observer
6. Powerful SPC function
7. It can measure the thickness of silk screen printing and copper sheet
Second, product features
1. The original high-definition color camera imported from Germany is adopted to ensure the high precision and high stability of the test.
2. The use of military-grade secondary laser, less interference by external environmental light source, more stable and longer life.
3. Using flexible hardware design, light source, laser and camera, different colors of PCB board can be tested.
4. The software analysis conditions are based on the database, and the early warning function is realized according to the analysis conditions, which is intuitive and easy to understand.
5. Powerful report analysis function, automatically generate R-Chart, X-Bar, automatically calculate CPK.
6. Export detailed and complete SPC reports to completely avoid the drawbacks of handwritten reports.
7. The software adopts a simple and practical concept, focusing on the high-precision design of the test, and the repeatability of the correction block reaches plus or minus 0.001mm.
Third, product parameters
1. Brand: ASC
2. Model: SPI-6500
3. Software language: Chinese Simplified, English
4. Application range: solder paste, red glue, BGA, FPC, CSP, etc
5. Measurement items: thickness, area, volume, plane distance
6. PCB deformation correction: PCB tilt angle is automatically calculated and automatically corrected
7. Focus mode: manual focus
8. Lighting source: white LED module
9. Measurement light source: 650nm low-power red laser module
10. Measurement principle: laser 3-angle function method measurement
11.Y axis automatic moving range: 60mm
12. Precision resolution: 0.1 micron
13. Field of view (FOV): 15*12 (W*H) mm
14. Scanning step: minimum 5 microns (5 microns/10 microns/15 microns/20 microns)
15. PCB size: 400*400mm (special size can be customized)
16. Repeatable measurement accuracy: less than 1 micron
17. Volume repeatability: less than 1%
18. Area repeatability: less than 1%
19. Allowable PCB thickness: 1~10mm
20. Maximum measurement height: 4mm
21. Image resolution: 300 million
22. Measurement speed: up to 250 frames per second
23.3D display mode: point array display, line array display, rendering display, can be rotated at any angle
24. Measurement method: automatic full-screen measurement, automatic measurement by frame selection, manual measurement by frame selection
25. SPC analysis: average, maximum, minimum, X-Bar&R plot analysis, histogram analysis &Ca/Cp/Cpk output, etc. Sigma judged automatically
26. Process control: production line, time, printing materials, solder paste data, steel mesh data,
27. Operating system: Windows 7 or above
28. Computer system: dual-core 2G or more, 2G memory, PCI slot, USB interface 3, 17-inch LCD monitor
29. Equipment power supply: 220V/50/60HZ
30. Equipment power consumption: 300W
31. Equipment weight: 45kg
32. Dimensions: L*W*H(400mm*550mm*360mm)
4. Product pictures
Instrument master diagram
Convenient and adjustable PCB fixture
SPC data analysis interface

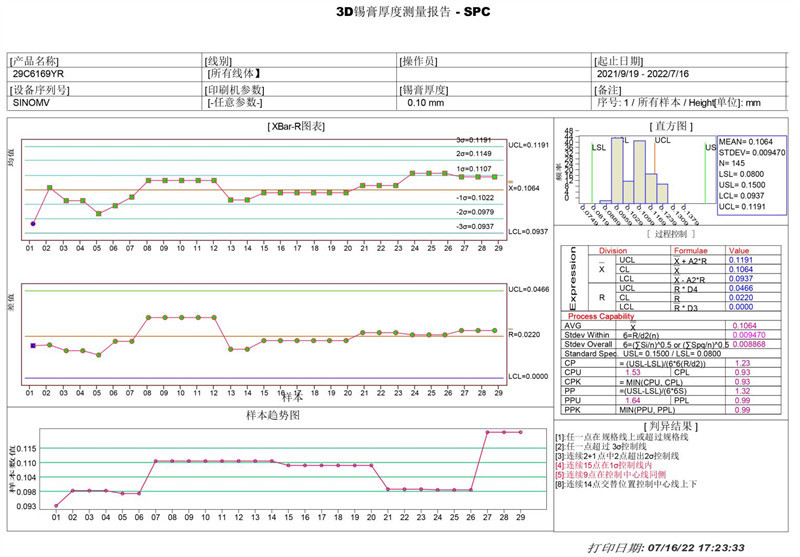

SPC measurement report

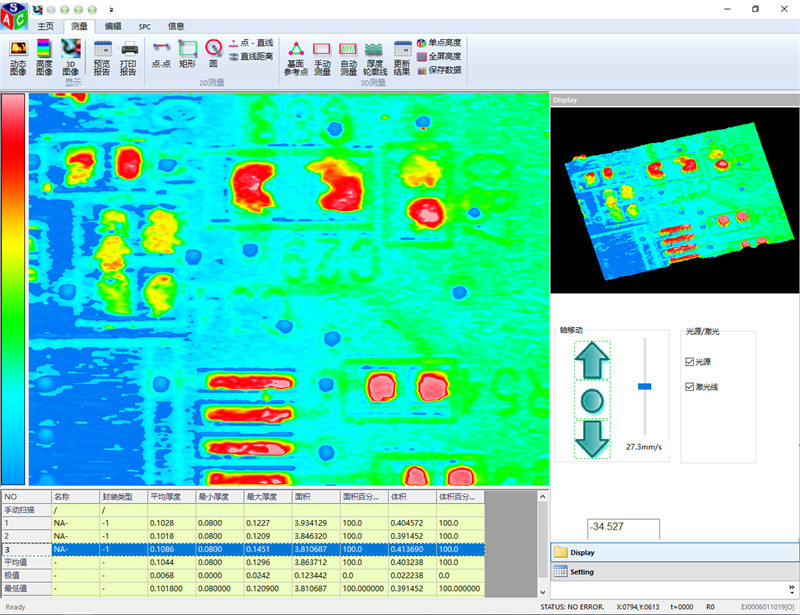

The main interface of the software
Z-axis motion button/focus
3D scan of the physical image
Measurement data
