3D solder paste thickness gauge
Category: Products
Category: 3D solder paste thickness gauge
The whole series of BathiveBride products are free of charge for 2 years or 24 months, and the software is upgraded for free for life. No notice will be given to upgrade or improve the software or hardware functions of the whole series of BathiveBride products. For more detailed product information, please check the official website of BathiveBride brand at any time: www.bathrive.com, or Email: bathrive@163.com
key word: BathiveBride products
- DESCRIPTION
-
- Commodity name: 3D solder paste thickness gauge
- Commodity ID: ASC SPI-7500
Type: Fully automatic 3D mode, semi-automatic 3D mode, manual 3D mode
1. Product functions
1. Fast programming, friendly programming interface
2. Multiple ways to measure
3. Truly one-click measurement
4. Bafang movement button, one-key focus
5. The scanning spacing is adjustable
6. Solder paste 3D simulation function
7. Powerful SPC function
8. MARK deviation is automatically corrected
9. One-click back to the center of the screen function
Second, product features
The automatic 3D solder paste thickness tester can pass the automatic movement of the XY platform, the Z axis automatic focusing, and cooperate with the laser to scan the solder paste printed on the pad, obtain the 3D data of each FOV, and can also be used to measure the average thickness of the solder paste on the entire FOV pad, so that the quality of solder paste printing becomes controllable
[Features]
1. Programmable measurement of several areas, automatic focusing at different test points, to overcome the error caused by plate deformation;
2. Automatically find the inspection position and correct the offset through PCB MARK;
3. Measurement mode: fully automatic, automatic mobile manual measurement, manual mobile manual measurement;
4. Solder paste 3D simulation drawing, reproduce the real shape of solder paste;
5. Adopt 3-axis automatic movement and focusing, automatically compensate and correct the warpage deformation of the substrate, and obtain the accurate height of the solder paste;
6. High-speed and high-resolution camera, high precision, powerful SPC data statistical analysis;
7. SIGMA automatic discrimination function, so that your operators have the ability to judge the quality of the solder paste printing process in real time;
8. Automatically generate CP, CPK, X-BAR, R-CHART, SIGMA column chart, trend chart, control chart, etc.
9. 2D auxiliary measurement, distance between two points, area size, etc.;
10. The list of measurement result data is automatically saved and SPC report is generated.
Third, product parameters
1. Application range: solder paste. Red gum. BGA. FPC. CSP
2. Measurement item: thickness. Area. Volume.3D shape, plane distance
3. Measurement principle: laser 3-angle function method measurement
4. Software language: Chinese/English
5. Lighting source: white high-brightness LED
6. Measurement light source: red laser module
7. X/Y moving range: standard 350mm*340mm (larger moving size can be specially customized)
8. Measurement method: automatic full-screen measurement. Automatic measurement by frame selection. Manual measurement is selected in the box
9. Field of view: 12mm*15mm
10. Camera pixels: 300 million / field of view
11. Maximum resolution: 0.1um
12. Scanning distance: 5 um/10 um/15 um/20 um
13. Repeated measurement accuracy: height less than 1um, area <1%, volume <1%
14. Magnification: 50X
15. Maximum measurable height: 5 mm
16. Maximum measurement speed: 250Profiles/s
17. 3D mode: rendering. Face. Line. Point 3 different 3D simulations, zoomable. revolve
18. SPC software: production line data, printing data, solder paste data, steel mesh data, measurement results independent analysis, X-Bar&R diagram analysis, histogram analysis &Ca/Cp/Cpk output, Sigma automatic judgment
19. Operating system: Windows 7
20. Computer system: dual-core P4, 2G memory, 17-inch LCD
21. Power supply: 220V 50/60Hz
22. Maximum power consumption: 500W
23. Weight: about 85KG
24. Dimensions: L*W*H (700mm*800mm*400mm)
4. Product pictures
Instrument master diagram

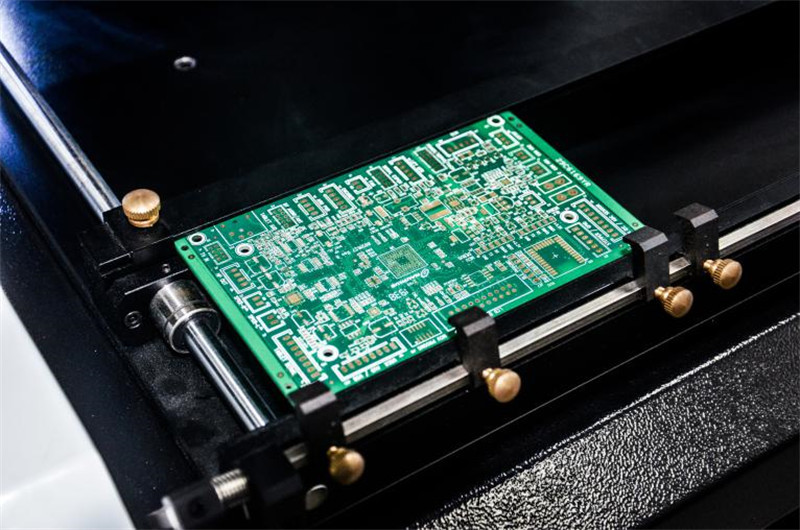

PCB automatic clamping

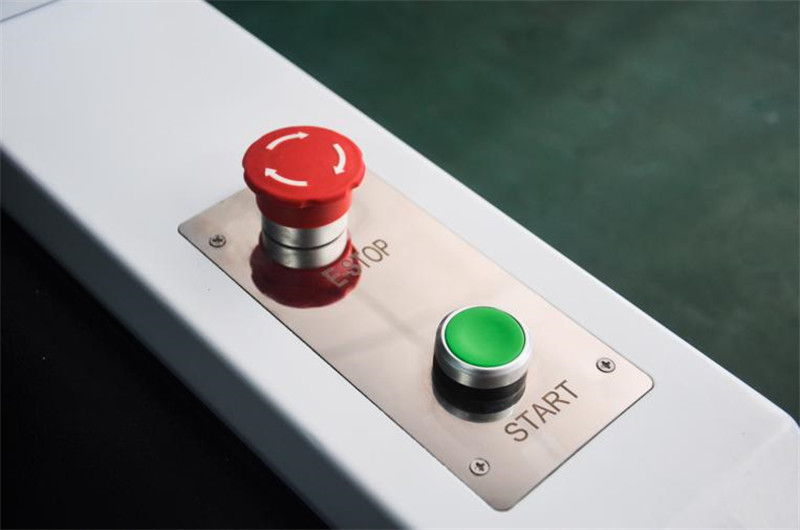

True one-click measurement
SPC data analysis interface

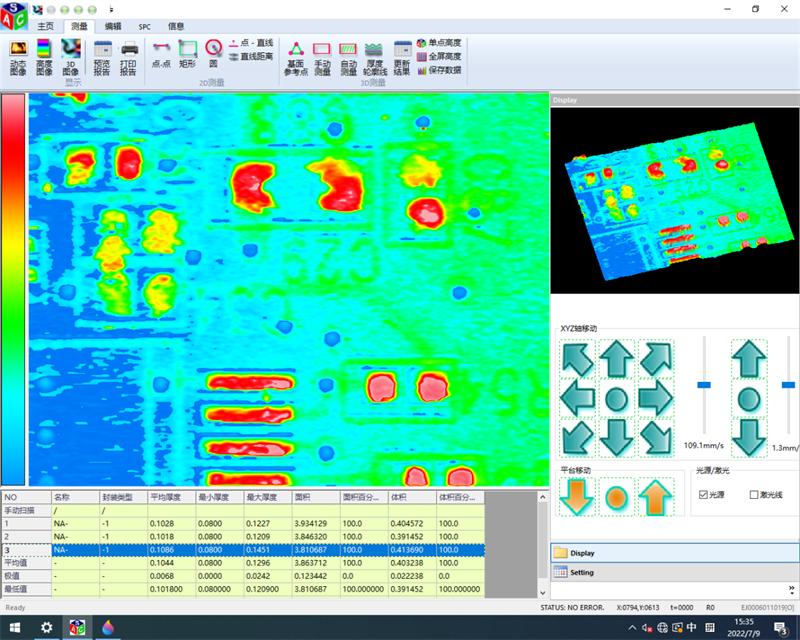

SPC measurement reportThe main interface of the software

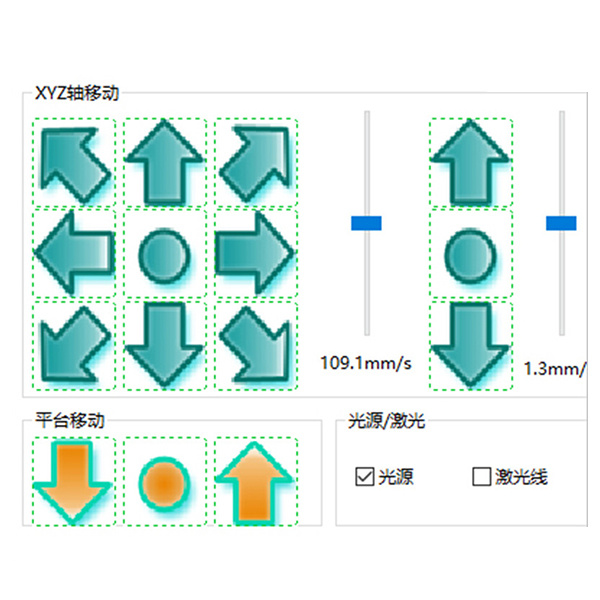

Bafang motion button/one-key focus
3D scan of the physical image
Measurement data
